DESCRIPTION
GT-QDCIR40 LNB allows to receive the 118.8 and 119 signals at the same time. You can run two satellites from this LNB both having the 118.8 and 119 signals to 4 different receivers. It is a special circular LNBF that has a low frequency of 10750.
Use the GT-QDCIR40 with a 33 or 39 " dish to receive both signals. This LNB is designed to stand up to the harshest weather. Strong Signal ONLY 0.2dB noise figure.
SPECIFICATIONS
- Input Frequency Range: High Band : 11.7 ~ 12.75 GHz
- Output Frequency Range: 750 ~ 2000 MHz
- L.O. Frequency: 10.75 GHz
- L.O. Frequency Stability: +/-1 MHz (Max)@ Room Temp.
- Local Oscillator Frequency Phase Noise:
-60dBc/Hz @ 1KHz (Max.)
-85dBc/Hz @ 10KHz (Max.)
-105dBc/Hz @ 100KHz (Max.) - Noise Figure: 0.2dB (Typ.)
- Conversion Gain: 56 ~ 60 dB
- Gain Flatness 26MHz Bandwidth: +/-0.3dB (Typ.)
- Operating Voltage:
RHCP 11.0 ~ 14.0 Vdc
LHCP 16.0 ~ 20.0 Vdc - Cross-Pol. Isolation: 25 dB (Typ.)
- Image Rejection: 40 dB (Min.)
- Current Consumption: 220 mA (Typ.)
- Output Connector Type: 75 OHMS F-Female
- Output Spurious: <-60dBm
- Operating Temperature Range: -40°C ~ +65°C
- Storage Temperature Range: -45°C ~ +70°C

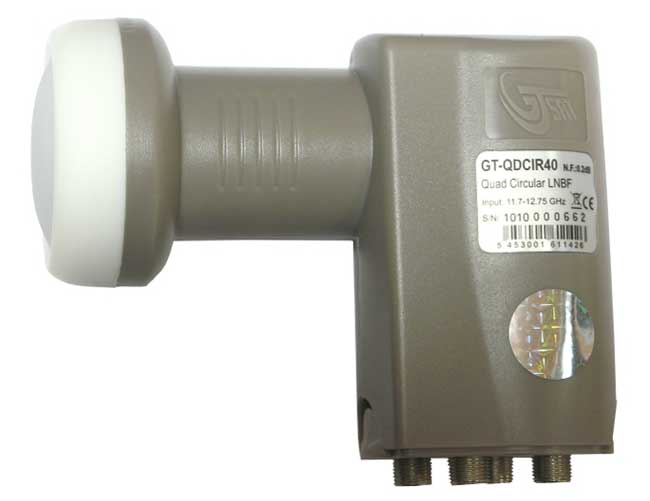

GT-Sat Quad-Output DSS Circular LNB for 118/119 W
Vendor: GT-Sat
SKU: GT-QDCIR40
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
GT-Sat Quad-Output DSS Circular LNB for 118/119 W
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
Need help with choosing the right product?
Click here to reach out to one of our experts.
