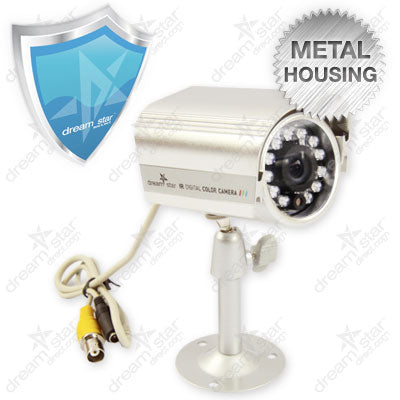

The Dreamstar Elite 540 TV Line Digital Day & Night IR Bullet Camera has one of the highest protection ratings (of IP66) and an illumination range (indoor) of 35 m. This Back-light Compensation capable bullet type camera is one of the finest your money can buy, guaranteed!
- 1/3" Sony Sony Super HAD CCD
- Digital Day/Night by IR Pass Filter
- Resolution of 540 Horizontal Lines
- Backlight Compensation(BLC)
- Illumination Range approx.. 35 Meters (Indoor)
- 12 integrated 850nm IR LED"s
- Protection Rating IP66
- 4mm Fixed Lens
System Day & Night, NTSC Imager 1/3" CCD, Sony Super HAD Interline Transfer CCD Active picture elements 510(H)x494(v)(250K) Scanning system 525 Lines, 2:1 Interlace Scanning Frequency 15.734KHz(H), 59.94KHz(V) synchronization Internal Min.Illumination 0.3Lux(color) / 0.01 Lux (B&W) Horizontal resolution 540 TVL(color) / 420 TVL(B&W) Shutter Speed 1/60 ~ 100,000sec Signal-to-Noise Ration(S/N Ratio) 48db(AGC off) Automatic Gain Control(AGC) Included Backlight Compensation(BLC) On Wide Dynamic Range(WDR) Yes White Balance AWB / ATW Application range day/ night, security Internal Adjustments EI(ELC/ALC On/Off), BLC On/Off, AGC On/Off, Flicker-less On/ Off Lens 4mm Fixed Lens illumination 24LED"s 850mm, Integrated light sensor illumination range approx..30m(indoor) Day & Night Yes, IR Pass Filter Video outputs 1Vp-p Composite, 75ohms Supply voltage 12VDC(+/-10%) Power consumption 3.6 W Max Temperature range(Operation) -10"~+50"C Humidity range 10%~90% non - condensing Protection ranting IP66 Housing Aluminum Dimensions(mm) 50.5(?) x 90mm (H)
Dreamstar Elite 540 TVL 12 IR LED Digital Day/Night Bullet Camera SOLD OUT
Vendor: Dreamstar
SKU: DSE-IRB5041-12N
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
Dreamstar Elite 540 TVL 12 IR LED Digital Day/Night Bullet Camera SOLD OUT
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
