Incorporating the same compact engineering which distinguishes the ClearStream family, the C5 is targeted specifically for the high VHF band. (Ch7-13 ; 174 -216 MHz). Purposely built for high VHF, the ClearStream 5’s efficient, compact design offers excellent gain and impedance matching across the whole post 2009 VHF DTV spectrum. The ClearStream 5 is superior to existing combination antennas for receiving VHF DTV signals and offering good directivity with a peak gain of 7.6 dBi.
This leap forward in efficient design allows up to 90% of the available broadcast signal to actually reach the incoming antenna cable rather than being lost to impedance mismatches. They are engineered for extra strength and durability, using powder coated aluminum for corrosion resistance and are easy to assemble.
Intended to compliment existing UHF antennas, the C5 will include a low loss UHF/VHF signal combiner.
With 24% of the American DTV stations moving to a high VHF assignment there exists a need for high VHF antenna that is compact yet powerful.
ClearStream5™ High Gain Digital VHF Antenna
- 470 - 698MHz (Channels 14 - 51)
- 174 - 216MHz (Channels 7- 13)
- Max gain: 7.6 dBi VHF; 4.9 dBi UHF
- VHF Range: 65 Miles+
- Impedance: 75 Ohm output F connection
- Includes UHF/VHF Antenna Combiner
- Size: 29" L x 23" W x 11.5" D
- 90% efficient at 200 MHz 100% compatible with all ATSC tuners
- Smallest high gain VHF/UHF antenna on the market
- New Engineering for core VHF DTV frequencies (Ch 7 - 13)
- Single point of impingement resulting in unmatched pulse fidelity and lower waveform distortion
- Easy to assemble
- No extra transformers needed

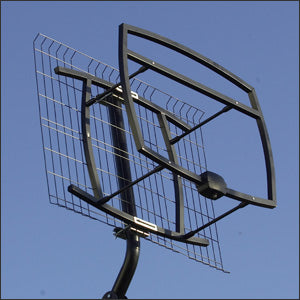

* Antenna shown with optional mast *
