| Features: | |
| * | 5.8GHz wireless transmitter and receiver with 8 selectable channels (Dip Switch) |
| * | 433.92MHz infrared control radio return feature |
| * | Antenna (5.8GHz) are embedded into housing inside |
| * | Compatible with Camcorder or CMOS camera application |
| * | Low power consumption |
| * | NTSC/PAL video format available |
| * | The equipment realizes that several televisions share one set-top box or DVD |
| * | Range up to 100m(L.O.S.) |
| * | Ideal for microwave anti-jamming capability |
| TRANSMITTER | RECEIVER | ||
| Item | Specification | Item | Specification |
| Frequency | 5725MHz~5865MHz | Frequency | 5725MHz~5865MHz |
| Sender Power | 17dBm?Typical? | Receiver Sensitivity | -85dBm?Minimum? |
| Channel Number | 8 | Channel Number | 8 |
| Frequency Stability | ±100 KHz?Typical? | L.O. Stability | ±100 KHz?Typical? |
| Video Input Level | 1 Vp-p?Typical? | Video Output Level | 1 Vp-p?Typical? |
| Audio Input Level | 1 Vp-p?Typical? | Audio Output Level | 1 Vp-p?Typical? |
| Supply Voltage | 9V | Supply Voltage | 9V |
| Current Consumption | 500 mA?Typical? | Current Consumption | 500 mA?Typical? |
| Dimension | 148Dx126Wx 41H?Unit is mm? | Dimension | 148Dx126Wx 41H?Unit is mm? |
| Operating Temperature | ?10?~ +60? | Operating Temperature | ?10?~ +60? |
| Infrared Remote Control Radio Return | |||
| Frequency | 433.92MHz | Receiver Sensitivity | -100dBm |
| Modulation/Demodulation | ASK | Sender Power | 10dBm?Typical? |

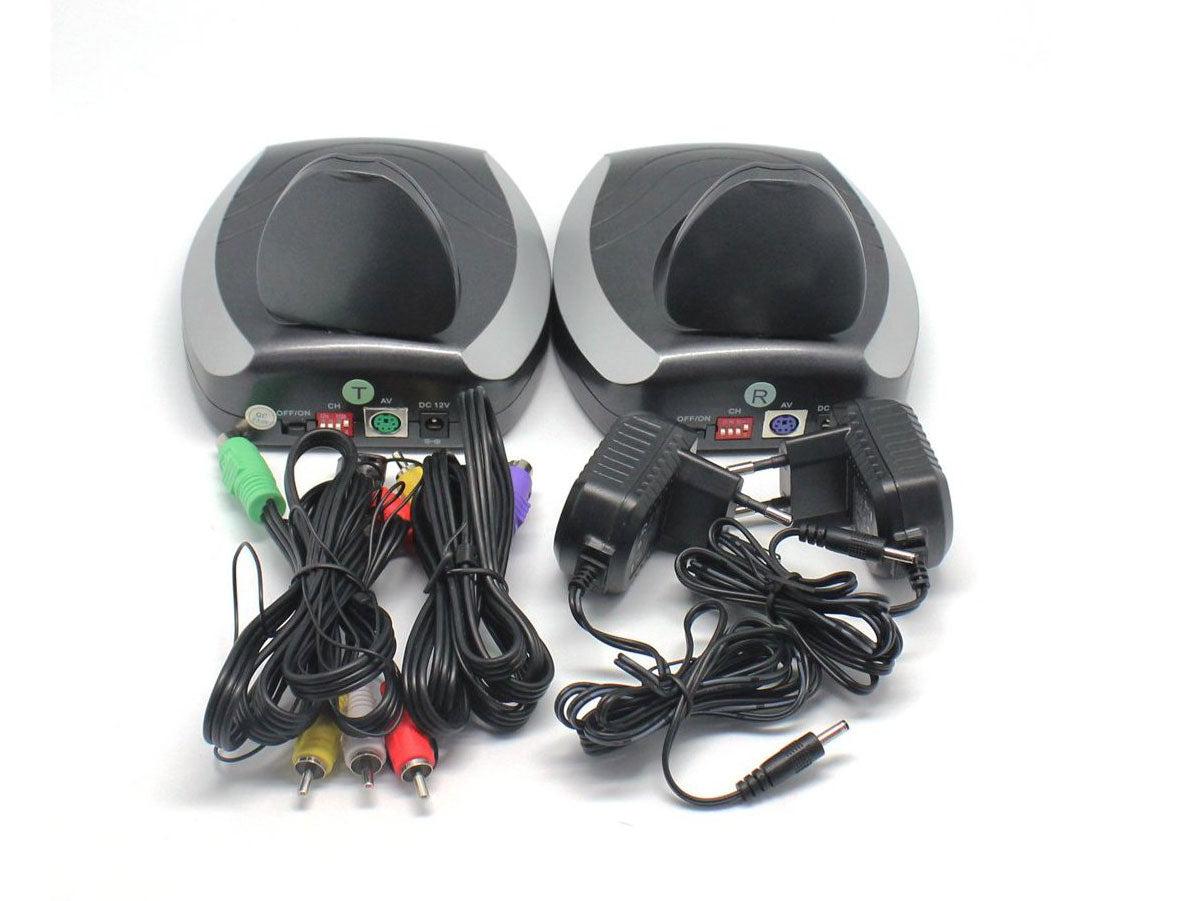

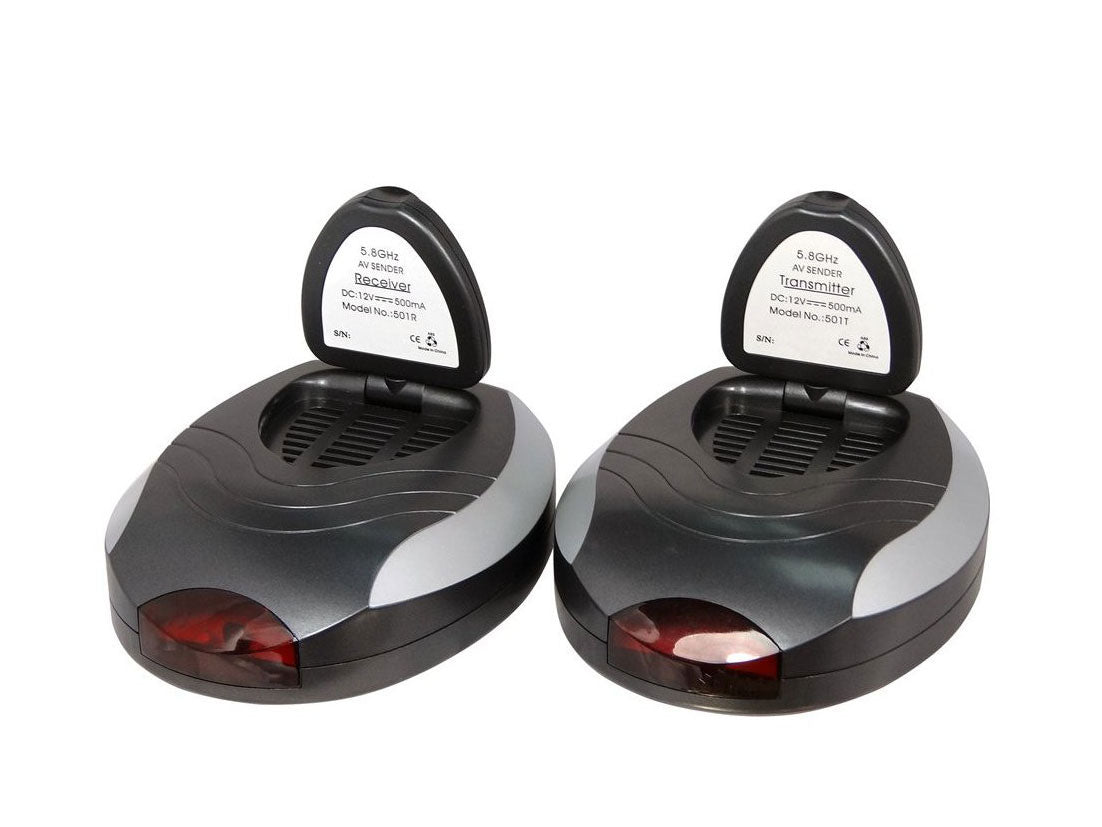

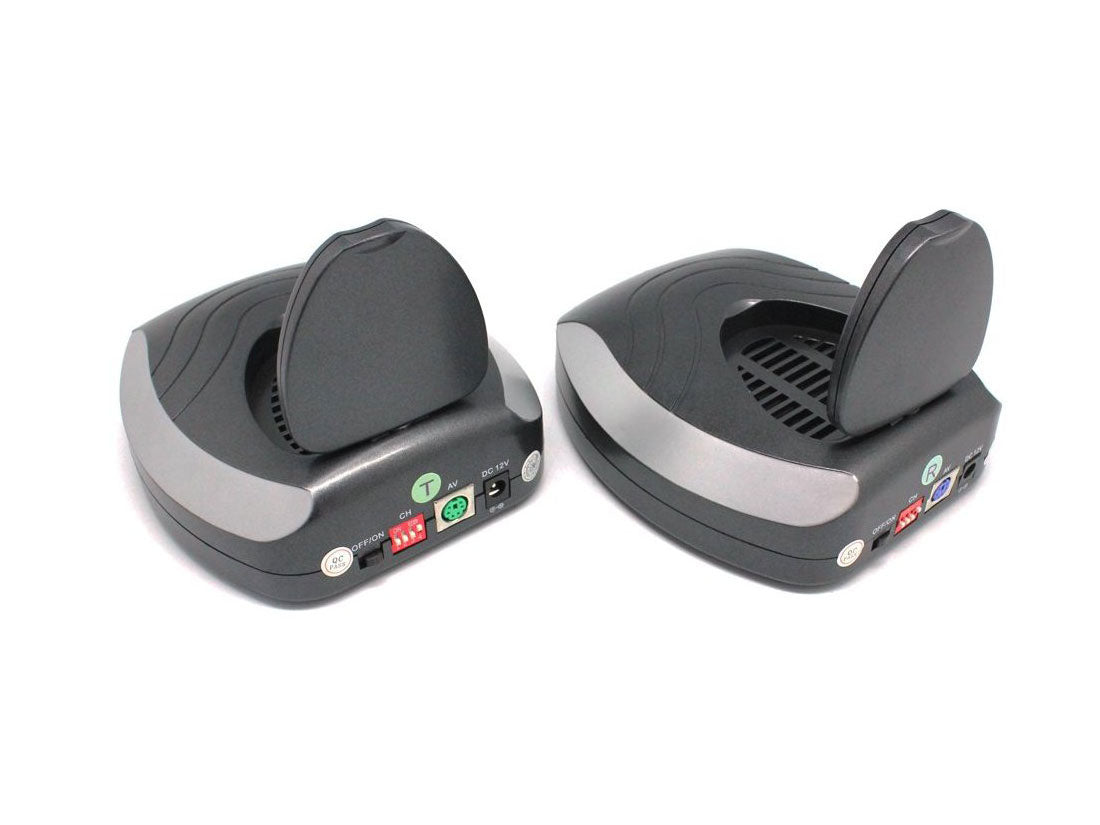

5.8GHz Wireless Audio-Video Sender
Vendor: Angel Electronics
SKU: 5.8GHz AV Sender
Regular price
$85.00
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
5.8GHz Wireless Audio-Video Sender
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
Need help with choosing the right product?
Click here to reach out to one of our experts.
| Features: | |
| * | 5.8GHz wireless transmitter and receiver with 8 selectable channels (Dip Switch) |
| * | 433.92MHz infrared control radio return feature |
| * | Antenna (5.8GHz) are embedded into housing inside |
| * | Compatible with Camcorder or CMOS camera application |
| * | Low power consumption |
| * | NTSC/PAL video format available |
| * | The equipment realizes that several televisions share one set-top box or DVD |
| * | Range up to 100m(L.O.S.) |
| * | Ideal for microwave anti-jamming capability |
| TRANSMITTER | RECEIVER | ||
| Item | Specification | Item | Specification |
| Frequency | 5725MHz~5865MHz | Frequency | 5725MHz~5865MHz |
| Sender Power | 17dBm?Typical? | Receiver Sensitivity | -85dBm?Minimum? |
| Channel Number | 8 | Channel Number | 8 |
| Frequency Stability | ±100 KHz?Typical? | L.O. Stability | ±100 KHz?Typical? |
| Video Input Level | 1 Vp-p?Typical? | Video Output Level | 1 Vp-p?Typical? |
| Audio Input Level | 1 Vp-p?Typical? | Audio Output Level | 1 Vp-p?Typical? |
| Supply Voltage | 9V | Supply Voltage | 9V |
| Current Consumption | 500 mA?Typical? | Current Consumption | 500 mA?Typical? |
| Dimension | 148Dx126Wx 41H?Unit is mm? | Dimension | 148Dx126Wx 41H?Unit is mm? |
| Operating Temperature | ?10?~ +60? | Operating Temperature | ?10?~ +60? |
| Infrared Remote Control Radio Return | |||
| Frequency | 433.92MHz | Receiver Sensitivity | -100dBm |
| Modulation/Demodulation | ASK | Sender Power | 10dBm?Typical? |
