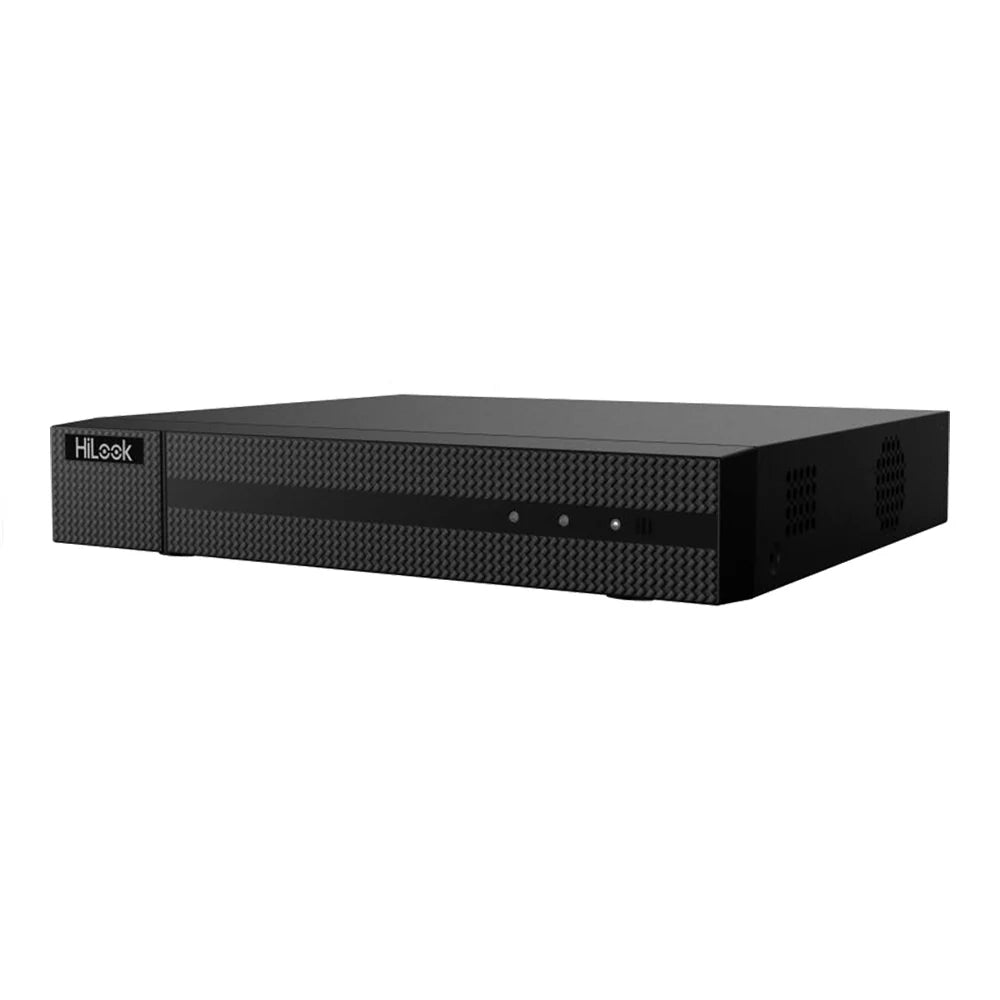

HILOOK 8-ch 5 MP 1U H.265 DVR WITH 2TB HDD COMPATIBLE WITH HIKVISION / HILOOK / OEM HIKVISION

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• 8 analog channels and 1 HDD 1U DVR
• Efficient H.265 Pro+ compression technology
• Up to 8 MP@8 fps and 5 MP@12 fps encoding capability
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Up to 16 network cameras can be connected.

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input

4-ch (up to 12-ch)

Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

8-ch;

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS InputPAL/NTSC

HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output ModeHDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous playback8-ch

Recording

Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate32 Kbps to 10 Mbps

Dual-streamSupport

Stream TypeVideo, Video & Audio

Audio CompressionG.711u

Audio Bitrate64 Kbps

Network

Total Bandwidth128 Mbps

Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection64

Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA1 SATA interface

CapacityUp to 10 TB capacity for each disk

USB InterfaceRear panel: 2 × USB 2.0

General

Power Supply12 VDC, 2 A

Consumption≤ 10 W (without HDD)

Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity10% to 90%

Dimension (W × D × H)263 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight≤ 1.6 kg (without HDD, 3.5 lb.)
