Brief Description
The motor uses DiSEqC 1.2 communication protocol and is compatible with all receivers that use standard DiSEqC 1.2 or USALS (Universal Satellite Automatic Location System) to control the movement of the dish.
FEATURES:
Motorizations for satellite dishes mod. HH90 |

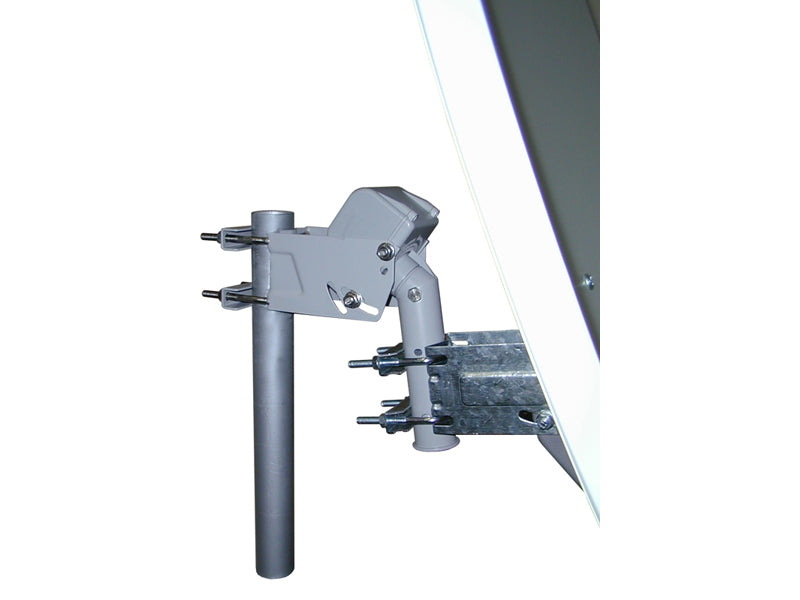

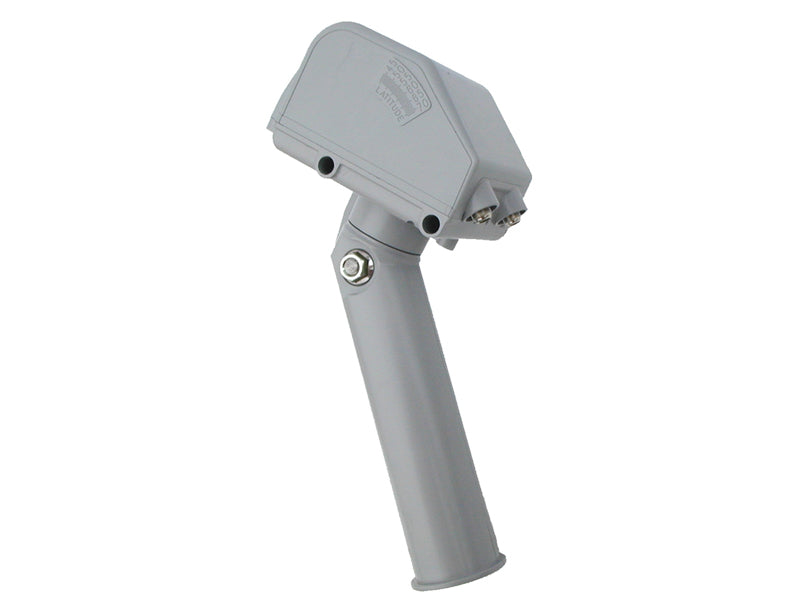

Rotor SAT HH is a motor that allows to point any satellite dish towards all visible satellites in the polar orbit. The characteristics that make Rotor SAT HH particularly valid are as follows: |
|
Rotor SAT HH is directly controlled by DiSEqC1.2 or USALS compatible receivers , where the rotation of the motor automatically begin when selecting the required channel. For all those receiver not provided with DiSEqC, STAB has developed the interfaces MS 220, MP 01, MP 02 (page.5) to drive the motors by the Tv cable. |
SPECIFICATIONS:
| Operating Protocol | DiSEqC 1.2 |
|---|---|
| Maximum Antenna Diameter | 95 cm |
| Maximum Antenna Weight | 10 Kg |
| Pole Support Diameter | From 35 to 68 mm |
| Antenna Support Length | 145 mm |
| Antenna Support Diameter | 42 mm |
| Rotation Angle | ± 65 ° |
| Rotation Speed | 2.4 °/s (18V); 1.5 °/s (13V) |
| Operating Power Supply | 13 / 18 Vdc |
| Consumption in Stand-by Mode | 40 mA |
| Consumption in Operating Mode | 180 mA |
| Starting Consumption (max) | 350mA |
| Wattage | 6.3 W (Max.), 0.4 W (Min.) Stand-by |
| Operating Temperature | -40 °C· +80 °C |
| Maximum Relative Humidity | 100% |
| Programmable Positions (DiSEqC 1.2) | 49 satellites |
| Preset Positions (DiSEqC 1.2) | 28 satellites |
| Programmable Positions (USALS) | No Limits |
| Connectors | F-type |
| Connection | Satellite Coaxial Cable |
| Mechanical Limits | ± 72 ° |
| Software Programmable Limits | From 5° to 62° |
| Fine Tuning | Impulse 0.1 ° |
| Pole Inclination | From 10 ° to 70 ° |
| Weight | 2.6 kg |
STAB HH90 Satellite Dish Motor
Vendor: STAB Italia
SKU: HH90
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
STAB HH90 Satellite Dish Motor
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
Need help with choosing the right product?
Click here to reach out to one of our experts.
