HH100 Rotor SAT HH is a motor that allows to point any satellite dish towards all visible satellites in the polar orbit. The characteristics that make Rotor SAT HH particularly valid are as follows:
- Maximum precision
- Mechanical robustness
- Connection without external feeding, only by coaxial cable
- Reduced dimensions
- Maximum easiness of installation
Rotor SAT HH is directly controlled by DiSEqC1.2 or USALS compatible
receivers , where the rotation of the motor automatically begin when selecting
the required channel. For all those receiver not providet with DiSEqC, STAB has
developed the interfaces MS 220, MP 01, MP 02 (page.5) to drive the motors by
the Tv cable.
| Operating protocol | DiSEqC 1.2 |
| Maximum antenna diameter | 100 cm |
| Maximum antenna weight | 12 kg |
| Pole support diameter | 50 – 83 mm |
| Antenna support length | 125 mm |
| Antenna support diameter | 54 mm |
| Rotation angle | ±62° |
| Rotation speed | 1,8°/s(18V);1,2°/s(13V) |
| Operating power supply | 13 / 18 Vdc |
| Consumption in stand-by mode | 30 mA |
| Consumption in operating mode | 190 mA |
| Starting consumption (max) | 350 mA |
| Operating temperature | -40°C – +80°C |
| Maximum relative humidity | 100% |
| Programmable positions (DiSEqC1.2) | 49 satellites |
| Preset positions (DiSEqC1.2) | 28 satellites |
| Programmable positions (USALS) | No limits |
| Connectors | Type F |
| Connection | Coaxial |
| Mechanical limits | ±70° |
| Software programmable limits | 5° – 62° |
| Fine tuning | Pulse of 0,1° |
| Inclination on the pole | 15° – 70° |

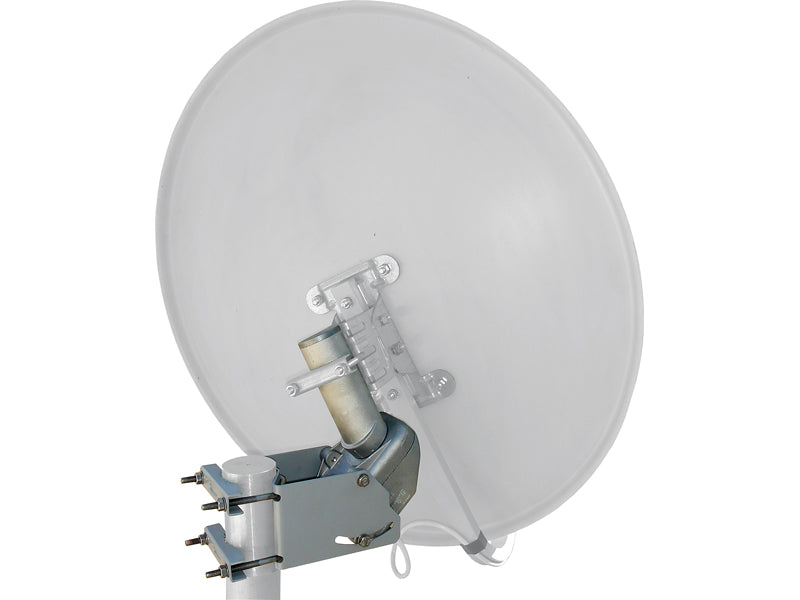

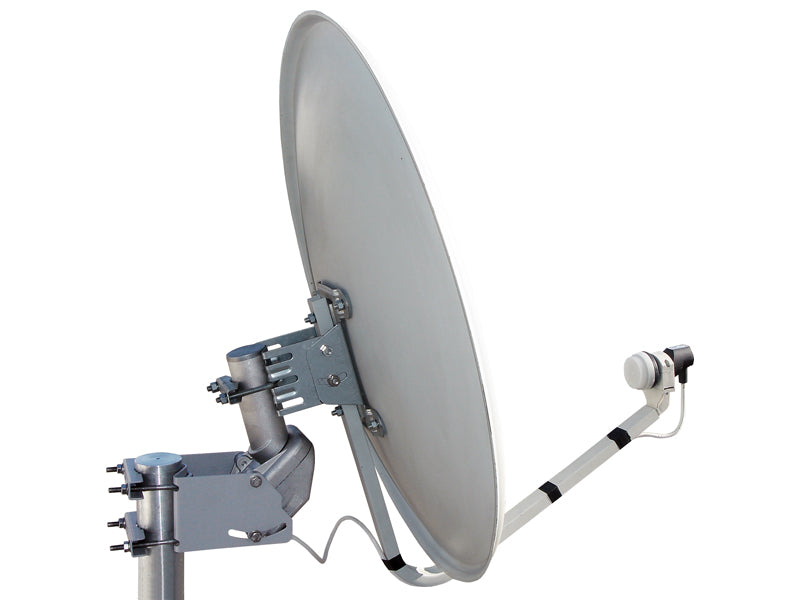

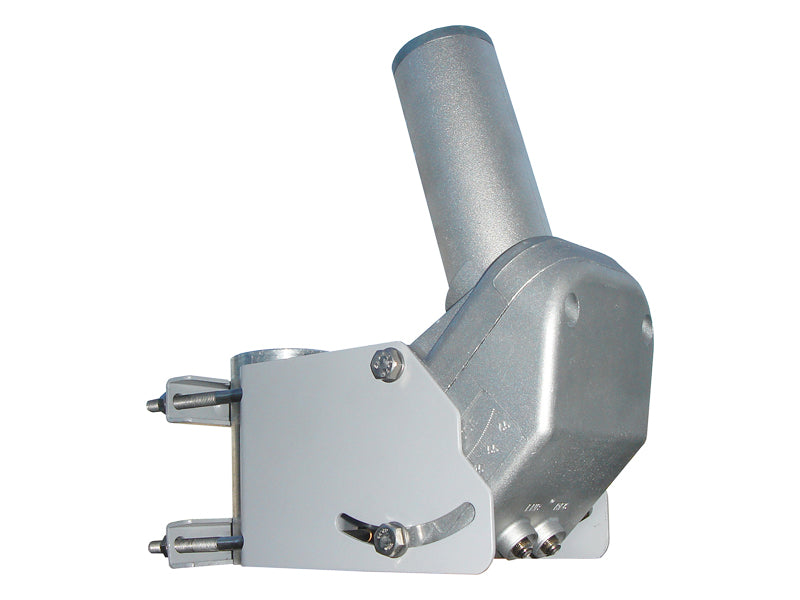

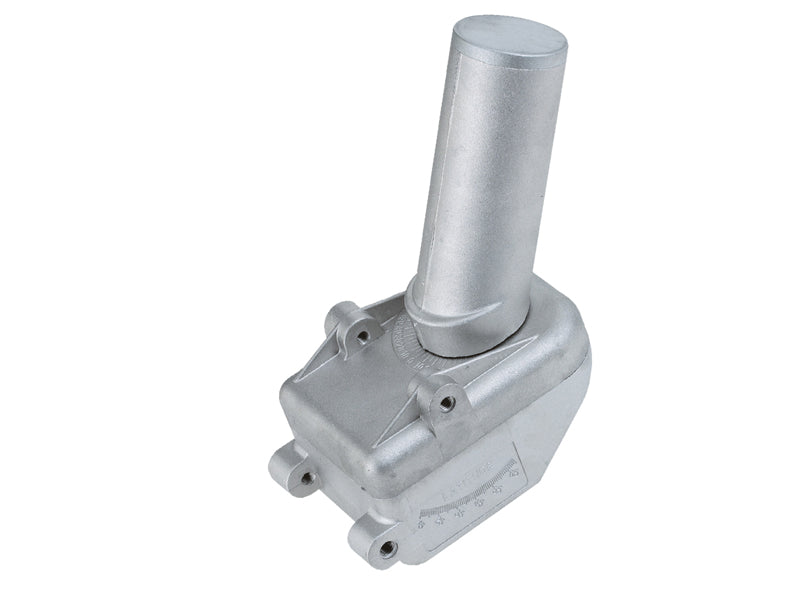

STAB HH100 Satellite Dish Motor
