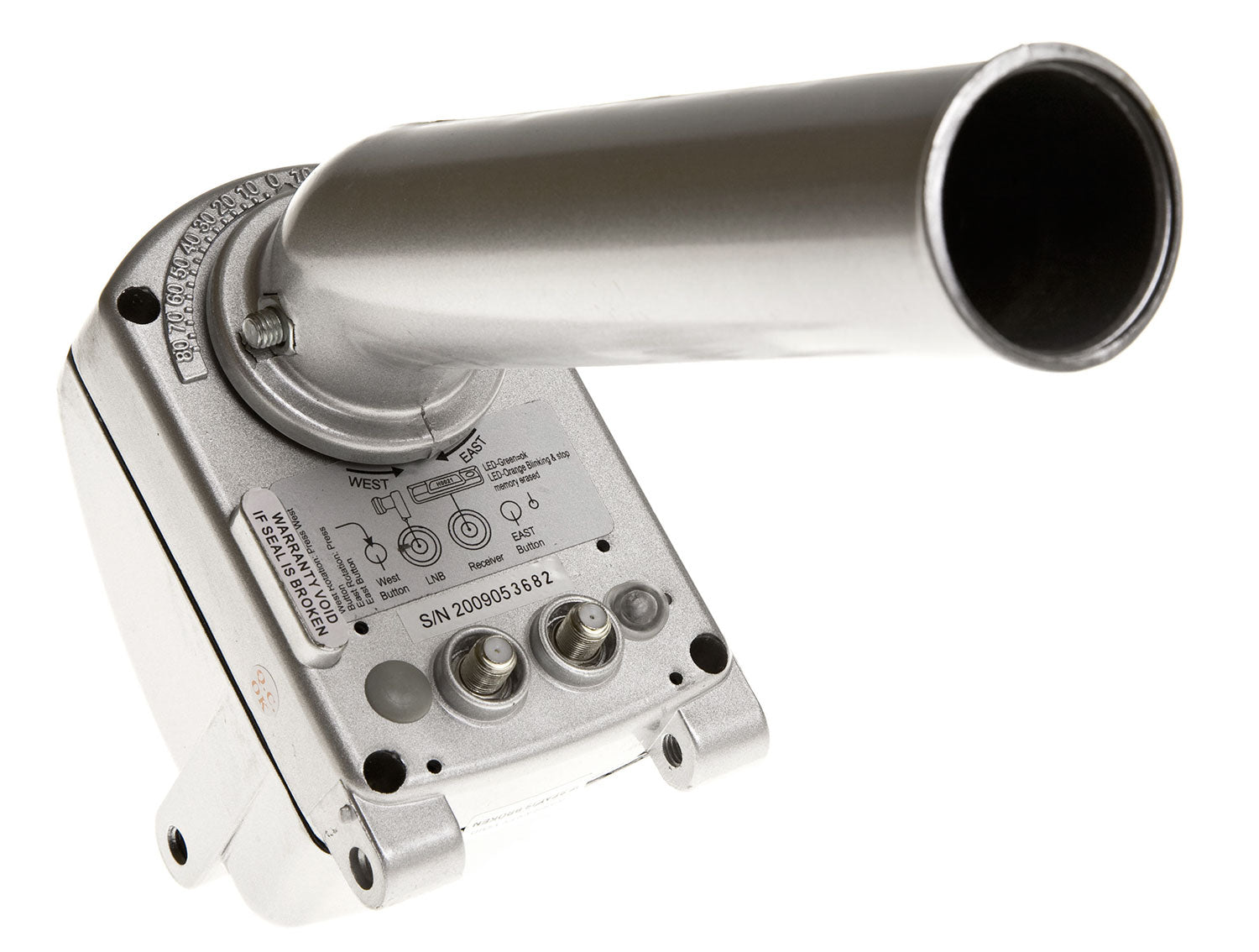

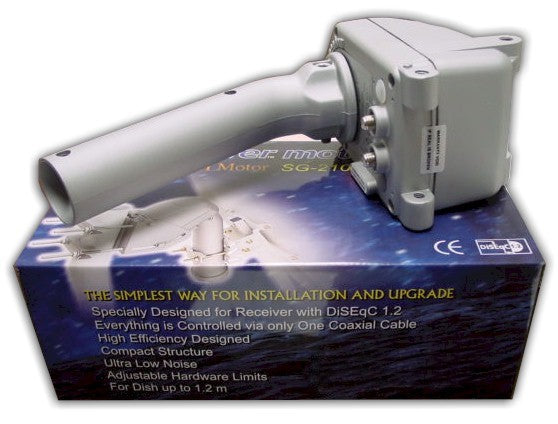

Brief Description

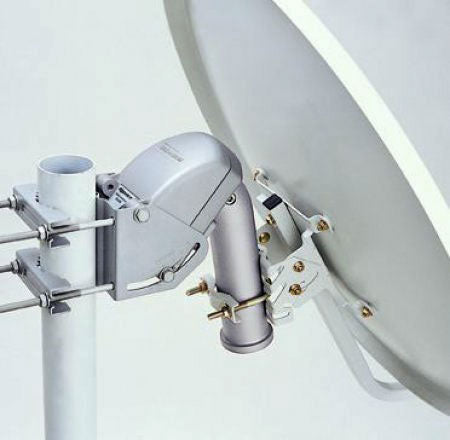

With the SG2100 motorized system the dish moves from east to west to track the satellites positioned along the Clarke belt. Good for any offset dish with a U-bolt or Pole mounting up to 120 cm satellite dish.
Works with all DiSEqC 1.2, 1.3, Goto X compliant receivers. It utilizes a data stream passed up the LNB coaxial lead to the mount. Only one coaxial cable is needed for installation.
FEATURES:
- Fits all popular dish with 42mm tube
- Special Design for any Receiver with DiSEqC 1.2
- Only One Coaxial Cable Control
- Go To X Function
- High Efficiency
- Compact Structure
- Ultra Low Noise
- Adjustable Hardware Limits
- Easy Installation with LED Indicator
- Manual EAST / WEST button
- For Dish up to 1.2M
SPECIFICATIONS:
| Model | SG2100 | ||||||||||||
| Antenna Diameter | 1.2M Max. | ||||||||||||
| Azimuth Angle | 70 ° EAST ~ 70° WEST (140 °) Adjustable | ||||||||||||
| Elevation Angle | 25 ° ~ 75 ° | ||||||||||||
| Input / Output Voltage | 13 / 18 VDC | ||||||||||||
| Power Consumption |
|
||||||||||||
| Rotation Speed | 1.9 ° / sec ( at 13V) ; 2.5 ° / sec ( at 18V) | ||||||||||||
| Satellite Positions | 60 | ||||||||||||
| Connector | F Type | ||||||||||||
| Command Protocol | DiSEqC 1.2 | ||||||||||||
| Resynchronize Function | YES | ||||||||||||
| Goto Position 0 Function | YES | ||||||||||||
| Goto X Function | YES | ||||||||||||
| Positioning Sensor | High Resolution Hall Effect Sensor | ||||||||||||
| EAST / WEST Limit | Adjustable Hardware and Programmable Software | ||||||||||||
| Manual Button | EAST / WEST | ||||||||||||
| Indicating LED | YES
|
||||||||||||
| Tube size for antenna | 55x160mm | ||||||||||||
| Stand size | 35 ~ 65mm |
Keywords: satellite motor, dish motor
Moteck SG2100 DiSEqC Satellite Dish Motor
Vendor: Moteck
SKU: SG2100
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
Moteck SG2100 DiSEqC Satellite Dish Motor
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
