Standard ku band digital ready single LNB for analog and digital systems. low noise temperature, light weight, easy to install. input frequency: 11.7Ghz-12.75Ghz L.O. frequency: 10.75Ghz
- Input Frequency Range Low Band : 10.7 ~ 11.7 GHz
- High Band : 11.7 ~ 12.75 GHz
- Output Frequency Range Low Band : 950 ~ 1950 MHz
- High Band : 1100 ~ 2150 MHz
- L.O. Frequency Low Band : 9.75 GHz
- High Band : 10.60 GHz
- L.O. Frequency Stability +/-1 MHz (Max)@ Room Temp.
- Local Oscillator Frequency Phase Noise -60dBc/Hz @ 1KHz (Max.)
- -85dBc/Hz @ 10KHz (Max.)
- -105dBc/Hz @ 100KHz (Max.)
- Noise Figure 0.3dB (Typ.)
- Conversion Gain 56 ~ 60 dB
- Gain Flatness 26 MHz Bandwidth +/-0.5dB (Typ.)
- Polarity Switching Voltage Low Band : 11.0 ~ 14.0 Vdc
- High Band : 16.0 ~ 20.0 Vdc
- Band Switching Low Band : 0 KHz
- High Band : 22 KHz +/- 4KHz
- Cross-Pol. Isolation 25 dB (Typ.)
- Image Rejection 40 dB (Min.)
- Current Consumption 90 mA (Typ.)
- Output Connector Type 75 OHMS F-Female
- Output Spurious <-60dBm
- Operating Temperature Range -40?C ~ +65?C
- Storage Temperature Range -45?C ~ +70?C

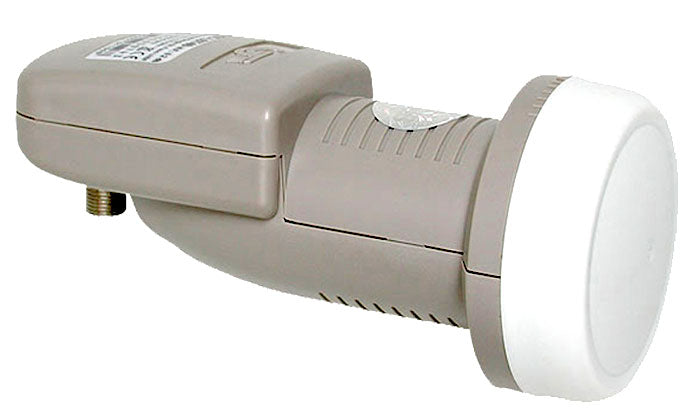

GT-Sat Single-Output FTA Linear LNB
Vendor: GT-Sat
SKU: GTSAT-SINGLE-S
Sale price
$35.00
Regular price
$45.00
Pickup available at 1515 Matheson Boulevard East
Usually ready in 24 hours
GT-Sat Single-Output FTA Linear LNB
-
1515 Matheson Boulevard East
Pickup availableUsually ready in 24 hours
1515 Matheson Boulevard East
A100
Mississauga ON L4W 2P5
Canada905-602-1382
Need help with choosing the right product?
Click here to reach out to one of our experts.
Standard ku band digital ready single LNB for analog and digital systems. low noise temperature, light weight, easy to install. input frequency: 11.7Ghz-12.75Ghz L.O. frequency: 10.75Ghz
- Input Frequency Range Low Band : 10.7 ~ 11.7 GHz
- High Band : 11.7 ~ 12.75 GHz
- Output Frequency Range Low Band : 950 ~ 1950 MHz
- High Band : 1100 ~ 2150 MHz
- L.O. Frequency Low Band : 9.75 GHz
- High Band : 10.60 GHz
- L.O. Frequency Stability +/-1 MHz (Max)@ Room Temp.
- Local Oscillator Frequency Phase Noise -60dBc/Hz @ 1KHz (Max.)
- -85dBc/Hz @ 10KHz (Max.)
- -105dBc/Hz @ 100KHz (Max.)
- Noise Figure 0.3dB (Typ.)
- Conversion Gain 56 ~ 60 dB
- Gain Flatness 26 MHz Bandwidth +/-0.5dB (Typ.)
- Polarity Switching Voltage Low Band : 11.0 ~ 14.0 Vdc
- High Band : 16.0 ~ 20.0 Vdc
- Band Switching Low Band : 0 KHz
- High Band : 22 KHz +/- 4KHz
- Cross-Pol. Isolation 25 dB (Typ.)
- Image Rejection 40 dB (Min.)
- Current Consumption 90 mA (Typ.)
- Output Connector Type 75 OHMS F-Female
- Output Spurious <-60dBm
- Operating Temperature Range -40?C ~ +65?C
- Storage Temperature Range -45?C ~ +70?C
